How to use Micropython on a CYD (Cheap Yellow Display)

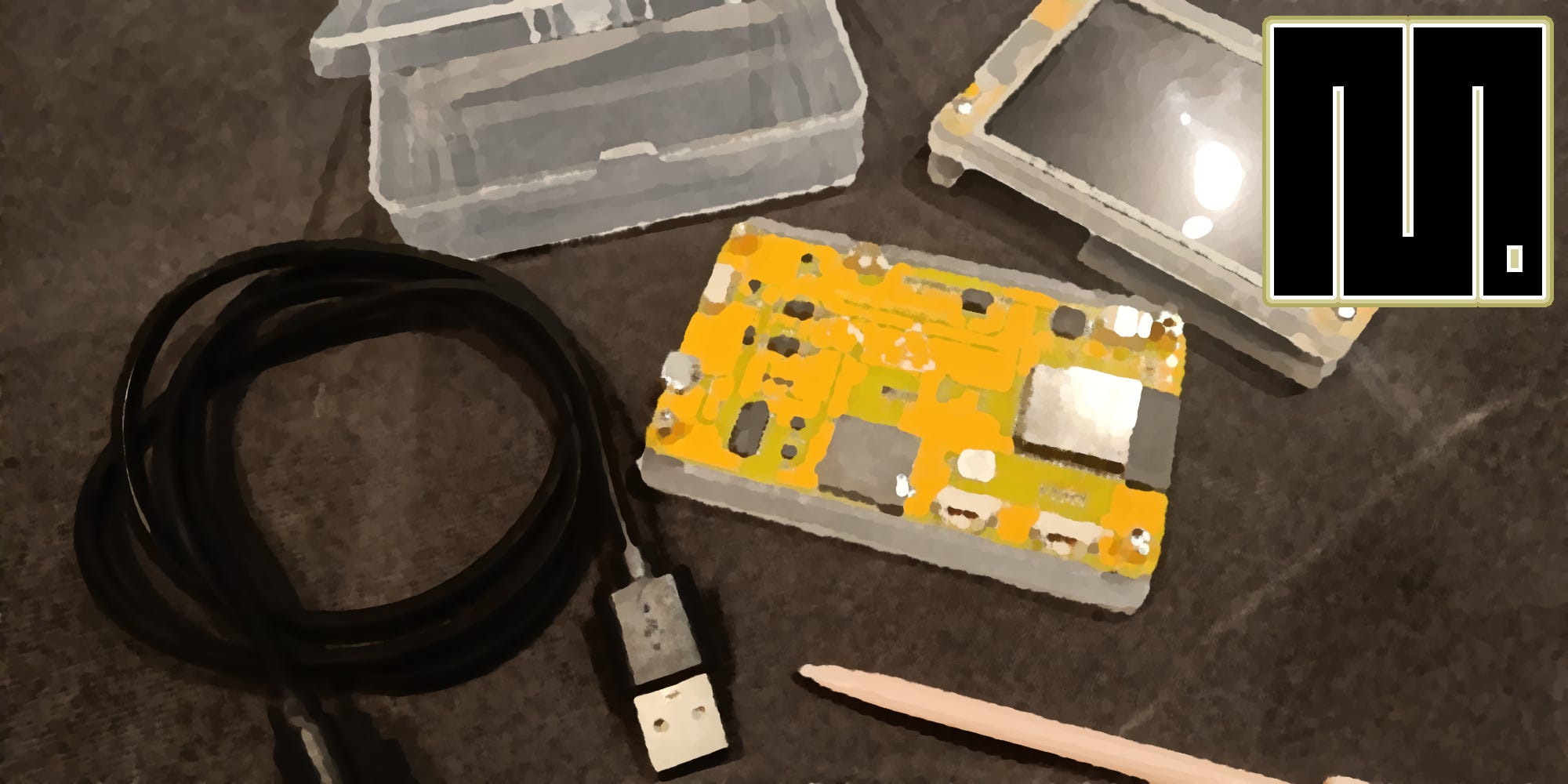

A while back I stumbled across Witnessmenow’s Cheap Yellow Display repository, and thought that it looked interesting (and cheap at $15 or so per device).

Unfortunately it didn’t cover using Micropython on the device, and I hate using C++, so I ended up with two of them sitting on my desk doing nothing.

Today I finally found a repository providing the code to get Micropython working on a CYD, but the instructions were rather brief, so I though I’d document how I got it to work for anyone else in the same position as me.

This guide walks you through getting everything set up and working, assuming you are using Ubuntu 22.04. If you’re using MacOS or Windows, it should help, but you’ll have to dig out the platform specific steps by searching the web yourself.

So, let’s get started.

Set up your environment

We want to use a virtual environment so we don’t mess up our Python installation on our machine.

mkdir CYD-micropython
cd CYD-micropython
mkdir venv
python -m venv ./venv
source venv/bin/activate

Then we install the esptool for flashing files to the CYD, and thonnyfor uploading files after we’ve flashed the CYD with Micropython.

pip install esptool
sudo apt-get install thonny

Obtaining the Python driver files

Clone JettisOnTheNet’s example and drivers for Micropython on the CYD:

git clone https://github.com/JettIsOnTheNet/Micropython-Examples-for-ESP32-Cheap-Yellow-Display

Gathering port information

You will need to connect your CYD to your PC using a USB-micro cable (but don’t do it quite yet). Note that the USB cable has to be a data carrying cable — many of these cables are for power only. If the next steps don’t work, your first step should be to try a new cable.

Get a list of current terminal ports:

ls /dev/tty*

Then plug the board in, and run the above command again. A new port will appear in the list of ports shown. It is probably /dev/ttyUSB0. That’s your board port.

You can now query the board over the USB port. For example:

esptool.py -p /dev/ttyUSB0 flash_id

Remember to replace ttyUSB0with your port number. This commad will return information about your board.

Erasing the flash memory

Now we need to clear the flash memory, and that involves getting the board into flash mode.

Press the RESET (EN) button (top-left most button behind the board as you look at the screen) and the BOOT button (just to the right of the RESET button: they’re both labelled on the board) at the same time, then let go of the RESET button first and the BOOT button second.

Hint: with a bit of practice you will learn how to do this by rolling your finger across the two buttons from left to right.

The board won’t boot up into the demo program flashed onto it in the factory. Instead, the screen will stay black, but the red LED on the back of the board will remain lit to show power is connected.

Because this is the first time we’re putting Micropython on the CYD, it is best to completely erase the flash:

esptool.py --chip esp32 --port /dev/ttyUSB0 erase_flash

This time, after the message Hard resetting via RTS pin the board won’t boot up into the demo program, because it’s not there.

Flashing with Micropython

Download the Micropython image from https://micropython.org/download/ESP32_GENERIC/

I used the first version I saw, namely v1.22.2 (2024–02–22) .bin, which worked.

Flash it to the board by putting it into flash mode, and running the esptool with the following command:

esptool.py --chip esp32 --port /dev/ttyUSB0 --baud 460800 write_flash -z 0x1000 ESP32_GENERIC-20240222-v1.22.2.bin

Running Thonny and uploading the Python scripts

Thonny is a Micropython IDE that you can use to upload files to your board, as an editor, and to test your scripts before trying to run them at the board. For now, we’re just going to use it to upload the files we need from JettisOnTheNet’s repository, so we don’t see a blank screen anymore.

At the command line start Thonny:

thonny

The Thonny GUI should appear. The first time you’ll be asked to pick your language and settings. I just went with the defaults. Then this screen appears:

First, we will connect the board to Thonny. Select Tools > Options, and then the Interpreter tab.

From the “Which kind of interpreter should Thonny use for running your code?” dropdown, select MicroPython (ESP32).

This changes the view in the Interpreter pane to show you the “Port or WebREPL” dropdown, which allows you to select the USB serial port you need to use — that’s the one you found out about above, for example USB Serial @ /dev/ttyUSB0 or whatever number you found out.

Then click on the OK button.

Now we are going to find the files we need to upload. Selected View > Files from the menu bar to show the file selection pane. Use the file pane to navigate to the Micropython-Examples-for-ESP32-Cheap-Yellow-Display folder you cloned from JettisOnTheNet’s github repository

Double click on boot.py, ili9341.pyand xpt2046.py to open each in its own editor pane.

You can get rid of <untitled> tab by clicking on the x next to it.

Then we save each of the three files to the CYD:

Go to each file tab in turn, then select the menu option File > Save as…, and select MicroPython device. Enter the correct name for each file (as it doesn’t remember it). A second pane will appear in the Files tab, with the heading MicroPython device, showing each file as you save it.

When all three files are copied across, you can hit the RESET button on your CYD, and the app will run. It puts a dot on the screen where you tap it, and shows the x and y co-ordinates at the bottom of the screen.

Congratulations — you’ve installed Micropython, and loaded some scripts across that run a Python program on your CYD.

Afterword

At this point I hit a problem trying to upload new edited files for the CYD at this point. The script locks the device, and even re-flashing it doesn’t get it out of the locked state.

It turns out you have to click in the Shell pane and then press Ctrl+C to exit the Python program running on the CYD, which puts you into a Python REPL and allows you to run Python commands on the device from the interpreter dynamically.

For example, try the following to list the files you loaded on to the device:

>>> import os
>>> os.listdir()
['boot.py', 'ili9341.py', 'xpt2046.py']

Have fun writing Python scripts for the CYD! I know I will…
